Heavy Duty Adirondack Chair Plans with Back Leg and Footstool

The free plans on this website are supported with advertising and affiliate revenue.  When you click some links in this plan, you may be helping us earn a small commission.  Thank you for supporting this website.



|save this plan
Adirondack chair heavy duty
Difficulty
Beginner Projects
| Print this plan

Easy to build adirondack chair. We made the base stronger with all 2x4 framing.  This Adirondack chair is a reader favorite and has been built thousands of times.

We also have a modern version here.

This plan includes a footstool.  You can also build a matching coffee table and a matching side table.  Check out all our outdoor furniture plans here.

Collections
No Pocket Hole Plans



 More Free Adirondack Chair Plans from Ana White

adirondack chair plansadirondack chair plansadirondack chair plansmodern adirondack chair plans



Sturdy Adirondack Chair Plans

Because we use 2x4s for the legs (and add the back leg) this decreases the overall cost, but increases the strength and durability.  This also makes the chairs easier to build.

But we don't sacrifice comfort - with the deep recline and optional footstool plans, these chairs won't disappoint.

ana white adirondack chair with side tables



Optional Footstool Plans

I have also created a matching footstool plan (see below) that works with this Adirondack chair.

heavy duty Adirondack chair

adirondack chair with footstool with ana white sitting in it



Video of Building this Adirondack Chair Plan

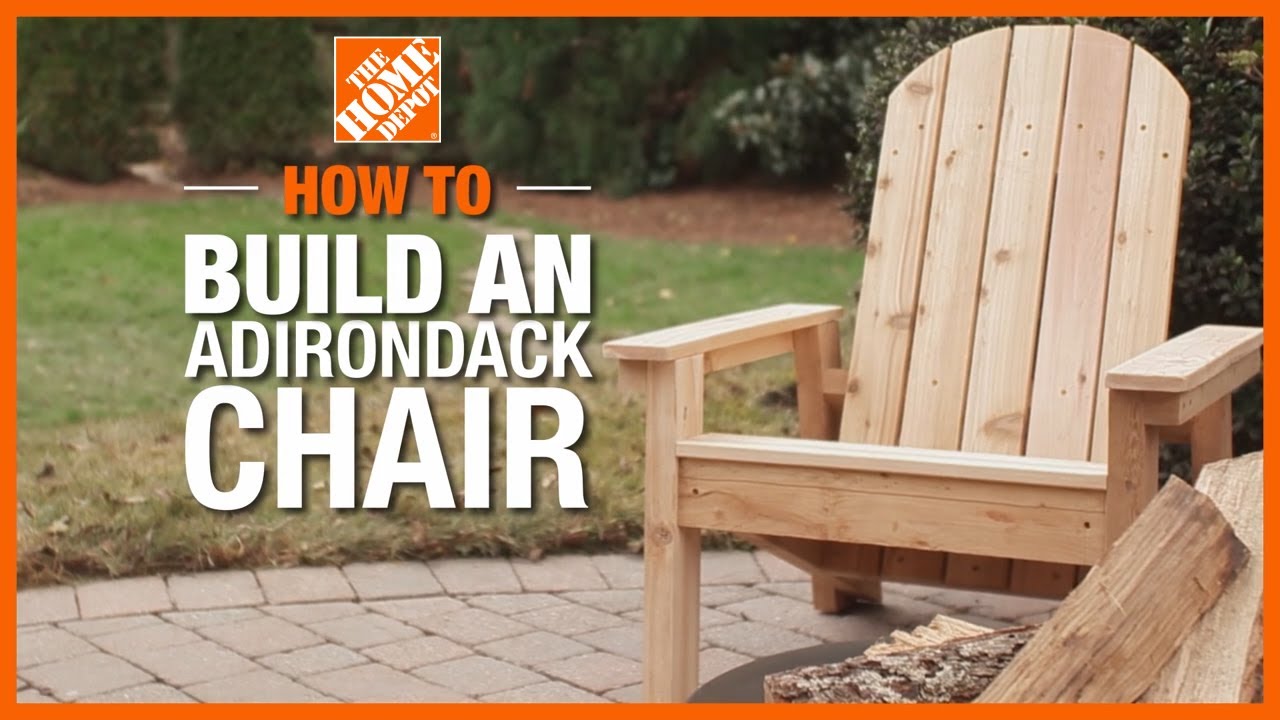

This plan is featured in Home Depots Adirondack chair video here:

More About Outdoor Wood Finishing

Outdoor furniture should be finished more like a deck than a dining table.  It's not complicated, but knowing just a few tips can make your furniture last much longer.  I share all my hard earned outdoor wood finishing secrets in this post.







Pin For Later!

2x4 Adirondack Chair Plans with Back Leg and Footstool

Dimensions
dimensions diagram of Adirondack chair
Dimensions are shown above

Preparation

Shopping List
  • 3 – 2×4 @ 8 feet long
  • 1 – 2×2 @ 6 feet long
  • 4 – 1×4 @ 8 feet long
  • (30) 2 1/2” self tapping wood screws
  • (60) 2” self tapping wood screws
  • (20) 1 1/4” wood screws
  • exterior appropriate wood glue
Cut List

2 - 2x4 @ 20 3/4” long with BOTH ends cut PARALLEL at 15 degrees off square, long point to short point measurement (back legs)
2 - 2x4 @ 20” (front legs)
2 - 2x2 @ 26 1/2” long, longest point measurement, ONE end cut at 15 degrees off square (arm support)
2 - 2x4 @ 31 7/8” long, ONE end cut at 35 degrees off square to longest point, OTHER END cut at 20 degrees off square to shortest point - see step 1 (stringers)
2 - 2x4 @ 22 1/2” (front apron and back support)
5 - 1x4 @ 22 1/2” (seat slats)
5 - 1x4 @ 36” (back slats)
1 - 1x4 @ 19 1/2” (back top support)
1 - 2x4 @ 19 1/2” (back base support)
2 - 1x4 @ 27” (arm rests)

Tools
Tape Measure
Speed Square
Pencil
Safety Glasses
Hearing Protection
Drill
Jigsaw
Miter Saw
Power Sander

Instructions

Step 1

From stretcher board, cut off top portion by marking with a square and cutting off with a jigsaw.  Do this on both stretcher boards.

Step 2

Attach one back leg and one front leg to a arm support with 2 1/2” exterior screws.  Keep the top and outside edges flush.


Step 3

Mark front leg on inside with arm support on outside, as shown in diagram.  Leave 1 1/2” space in front of stretcher.  Attach stretcher to front and back legs with 2 1/2” exterior screws and glue.


Step 4

Build opposite side of chair in mirror, with arm supports to outside and stretcher to inside.  Make sure the two match up.


Step 5

Front Apron is attached to fronts of stretcher and from outside of chair for additional support.


Step 6

Begin at the front of the chair and attach seat slats to stretcher with 2” screws and glue.  Leave a 1/2” gap between seat slats.


Step 7

Attach back support to back legs with 2 1/2” exterior screws, matching up measurements in diagrams.


Step 8

Build back by attaching all back boards to seat back base support, leaving approximately 1/2” gap in between.  Then attach at top with 1 1/4” screws.  Cut arch shape on back top using a large round object to guide you.


Step 9

Place back inside chair and secure in place with 2 1/2” exterior screws.  Also screw back to back support with 2” exterior screws.


Step 10

Secure armrests to arm supports and tops of legs with screws and glue.

Step 11

Optional Adirondack Footstool Plans

Adding a footstool to your adirondack chair will increase the comfort!  We've included the plans below that match this adirondack plan.



FOOTSTOOL SHOPPING LIST

1 - 2x4 @ 8 feet long or stud length

1 - 1x4 @ 12 feet long

2” and 2 1/2” exterior screws



FOOTSTOOL CUT LIST

2 - 2x4 @ 23 1/2” long with both ends cut at 30 degrees off square, parallel to each other, long point to short point measurement (stringers)

6 - 1x4 @ 22 1/2” (top boards)

2 - 2x4 @ 13 3/4” long with one end cut at 30 degrees off square, longest point measurement (legs)

Step 12

diagram showing the footstool side cuts

Cut the adirondack foot stool stringers with a compound miter saw first.  Then use a square to mark the cut off and cut with jigsaw or circular saw.

Step 13

Use 2" screws and glue to attach the deck boards on top of the stringers.

Step 14

Attach legs with 2-1/2" screws to insides of the stringers to complete the footstool.

Finishing Instructions
Preparation Instructions
Fill all holes with wood filler and let dry. Apply additional coats of wood filler as needed. When wood filler is completely dry, sand the project in the direction of the wood grain with 120 grit sandpaper. Vacuum sanded project to remove sanding residue. Remove all sanding residue on work surfaces as well. Wipe project clean with damp cloth.

It is always recommended to apply a test coat on a hidden area or scrap piece to ensure color evenness and adhesion. Use primer or wood conditioner as needed.
